Hybrid Heat
HYBRID HEAT
With a traditional heating and cooling system, if you wanted to save more, you had to use less. But a Hybrid Heat system combines the benefits of intelligent control for both gas and electric heating to create an intuitive system that can actually react to changing conditions.
No matter what the temperature is outside, a Hybrid Heat system will automatically select the fuel source most efficient for your home, which means you'll stay warm in the winter, cool in the summer and save money all year long.

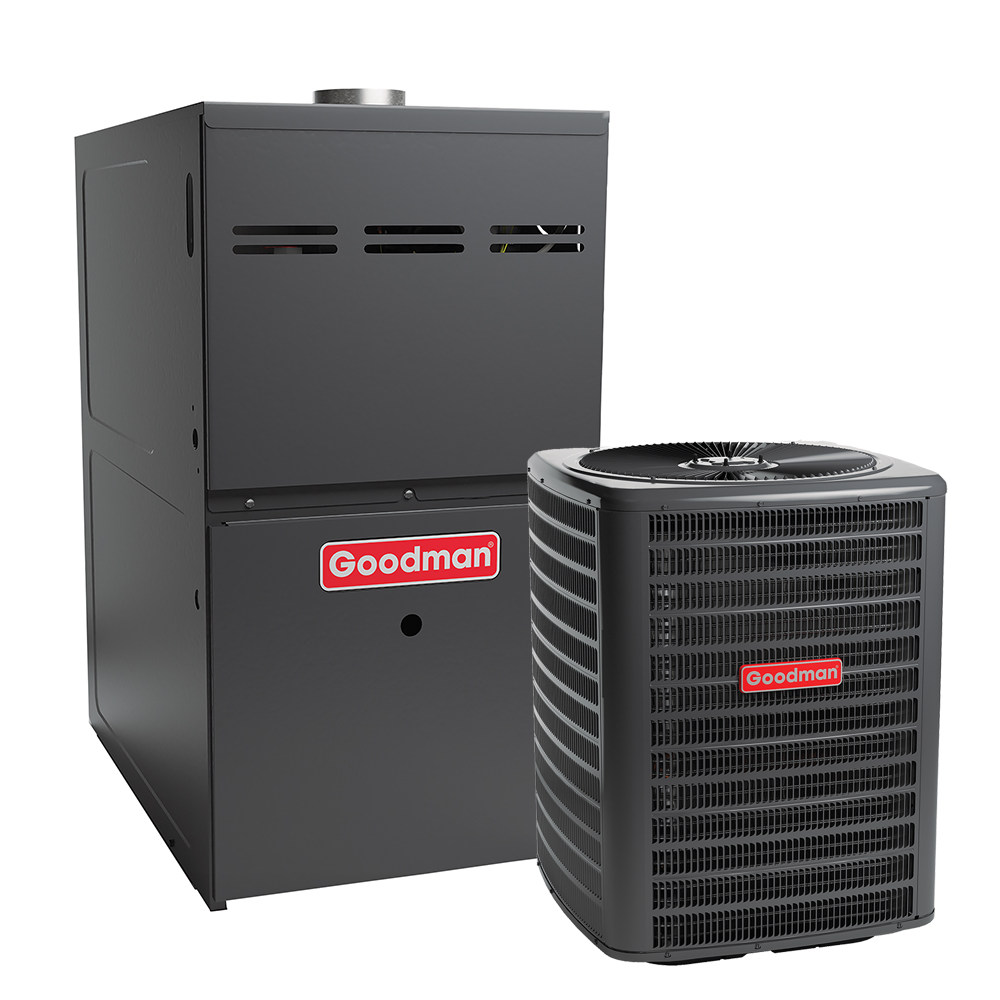

To design a Hybrid Heat system for your home, we professionally match one of our heat pump units with a natural gas furnace. Contact us to see how much energy you can save over your existing system.

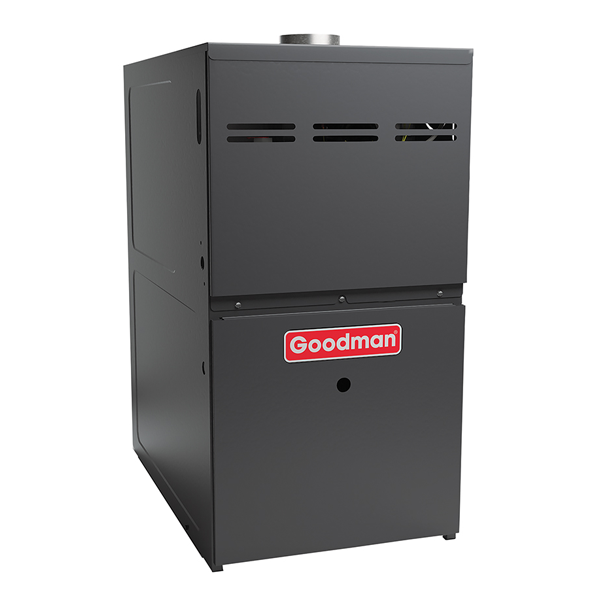

GAS FURNACE CHOICES FOR HYBRID HEAT SYSTEMS
MODULATING, VARIABLE-SPEED ECM GAS FURNACE
| Model Family: GMVM97 |
|---|
| Annual Fuel Utilization Efficiency: Up to 98% AFUE |
| Energy Star Rated: ENERGY STAR® |
| Blower Motor: Quiet variable-speed induced draft blower |
| Gas Valve: Self-calibrating modulating gas valve |
| Inducer Draft Motor: Quiet variable-speed induced draft blower |
| Fan Heating Operation: Variable-Speed |
| Factory Warranty Parts: 10-Year Parts Limited Warranty |
| Heat Exchanger Warranty: Lifetime Heat Exchanger Limited Warranty |
| Sound Level: Quiet operation |
Manufacturer's Stated Benefits:
- 10-Year Unit Replacement Limited Warranty
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- ComfortNet Communicating System compatible
- Uses ComfortNet™ communicating, two-stage or single-stage thermostats
MODULATING, VARIABLE-SPEED ECM GAS FURNACE
| Model Family: GCVM97 |
|---|
| Annual Fuel Utilization Efficiency: Up to 97% AFUE |
| Energy Star Rated: ENERGY STAR® |
| Blower Motor: Quiet variable-speed |
| Gas Valve: Self-calibrating modulating |
| Inducer Draft Motor: variable-speed induced draft blower |
| Fan Heating Operation: variable speed draft induced |
| Factory Warranty Parts: 10-Year Limited Parts Warranty |
| Heat Exchanger Warranty: Lifetime Limited Warranty |
| Sound Level: Quiet operation |
Manufacturer's Stated Benefits:
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- ComfortNet™ Communications System compatible
- Uses ComfortNet™ communicating, two-stage or single-stage thermostats
TWO-STAGE, VARIABLE-SPEED ECM GAS FURNACE
| Model Family: GMVC96 |
|---|
| Annual Fuel Utilization Efficiency: Up to 96% AFUE |
| Energy Star Rated: ENERGY STAR® |
| Blower Motor: Variable Speed |
| Gas Valve: Two-stage |
| Inducer Draft Motor: |
| Fan Heating Operation: Two-speed induced draft |
| Factory Warranty Parts: 10-Year Limited Parts Warranty |
| Heat Exchanger Warranty: Lifetime Limited Warranty |
| Sound Level: Quiet operation |
Manufacturer's Stated Benefits:
- Aluminized-steel tubular heat exchanger
- Efficient, quiet variable-speed circulator moto
- ComfortNet™ Communications System compatible
- Durable 110-volt silicon nitride igniter
- Self-diagnostic control board
TWO-STAGE, VARIABLE-SPEED ECM GAS FURNACE 80% AFUE
| Model Family: GMVC80 |
|---|
| Annual Fuel Utilization Efficiency: 80 AFUE |
| Energy Star Rated: No |
| Blower Motor: Vaiable Speed ECM motor |
| Gas Valve: Two-stage |
| Inducer Draft Motor: Two Speed |
| Fan Heating Operation: Two speed induced draft |
| Factory Warranty Parts: 10 year limited warranty |
| Heat Exchanger Warranty: Limited Lifetime Warranty |
| Sound Level: Quiet operation |
Manufacturer's Stated Benefits:
- Durable Silicon Nitride Igniter – Eliminates the need for an energy-wasting pilot light
- Self-Diagnostic Control Board – Continuously monitors the system for consistent, reliable operation.
- Thermally -Insulated Cabinet
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application

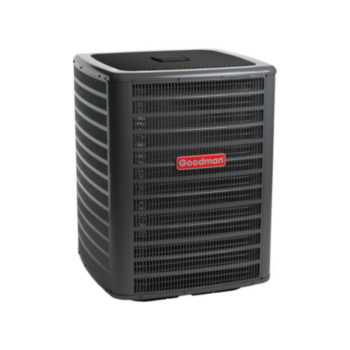

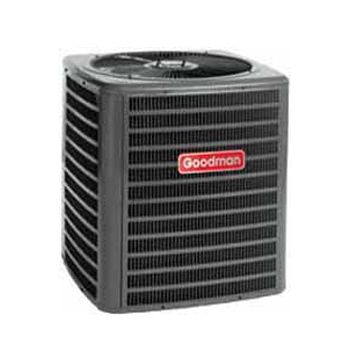

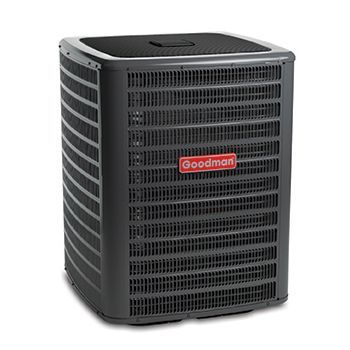

HEAT PUMP CHOICES FOR HYBRID HEAT SYSTEMS

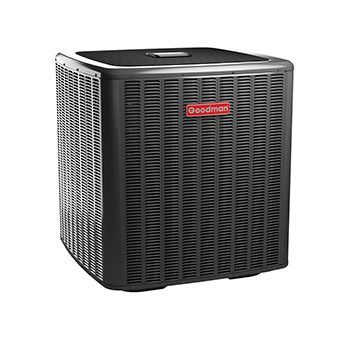

HIGH-EFFICIENCY SPLIT SYSTEM HEAT PUMP UP TO 21 SEER & 10 HSPF
| Model Family: GVZC20 |
|---|
| Efficiency SEER/SEER2: Up to 21 SEER |
| Efficiency EER/EER2: N/A |
| Efficiency HSPF/HSPF2: Up to 10 HSPF |
| Energy Star Rated: ENERGY STAR ® |
| Sound Level: Quiet Operation |
| Refrigerant Type: R-410A |
| Compressor: Variable-speed swing compressors |
| Factory Warranty Parts: 10-Year Parts Limited Warranty |
| Factory Warranty Compressor: Lifetime Limited Warranty |
Manufacturer's Stated Benefits:
- 10-Year Replacement Limited Warranty
- ComfortBridge™ Communications System compatible
- Factory-provided filter drier (field installation required)
- Factory-installed suction line accumulator
TWO STAGE HIGH EFFICIENCY 18 SEER HEAT PUMP
| Model Family: GSZC18 |
|---|
| Efficiency SEER/SEER2: Up to 18 SEER |
| Efficiency EER/EER2: Up to 13 EER |
| Efficiency HSPF/HSPF2: Up to 9.5 HSPF |
| Energy Star Rated: ENERGY STAR® |
| Sound Level: Quiet operation |
| Refrigerant Type: R-410A |
| Compressor: Two-stage Copeland® UltraTech scroll compressor |
| Factory Warranty Parts: 10-Year Parts Limited Warranty |
| Factory Warranty Compressor: Lifetime Limited Compressor Warranty |
Manufacturer's Stated Benefits:
- 10 Year replacement Limited Warranty
- ComfortNet™ Communications System compatible
- SmartShift™ technology with short-cycle protection
- Expanded ComfortAlert diagnostics built in
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction line accumulator
- High- and low-pressure switches
TWO STAGE HIGH EFFICIENCY 16 SEER HEAT PUMP
| Model Family: GSZC16 |
|---|
| Efficiency SEER/SEER2: Up to 16 SEER |
| Efficiency EER/EER2: Up to 13 EER |
| Efficiency HSPF/HSPF2: 9.5 HSPF |
| Energy Star Rated: ENERGY STAR® |
| Sound Level: Quiet operation |
| Refrigerant Type: R-410A |
| Compressor: Two-stage Copeland® UltraTech scroll compressor |
| Factory Warranty Parts: 10-Year Parts Limited Warranty |
| Factory Warranty Compressor: Lifetime Compressor Limited Warranty |
Manufacturer's Stated Benefits:
- 10-Year Unit Replacement Limited Warranty
- ComfortNet™ Communications System compatible
- SmartShift™ technology with short-cycle protection
- Expanded ComfortAlert diagnostics built in
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction line accumulator
ENERGY EFFICIENT SPLIT-SYSTEM HEAT PUMP
| Model Family: GSZ14 |
|---|
| Efficiency SEER/SEER2: Up to 15.0 SEER |
| Efficiency EER/EER2: N/A |
| Efficiency HSPF/HSPF2: Up to 9 HSPF |
| Energy Star Rated: ENERGY STAR® |
| Sound Level: 74 to 76 dBa |
| Refrigerant Type: R-410A Refrigerant |
| Compressor: High-efficiency scroll compressor |
| Factory Warranty Parts: 10-Year Parts Limited Warranty |
| Factory Warranty Compressor: N/A |
Manufacturer's Stated Benefits:
- 2-Year Unit Replacement Limited Warranty
- SmartShift™ technology to ensure quiet, reliable defrost
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Service ports and controls are accessible while unit is operating
